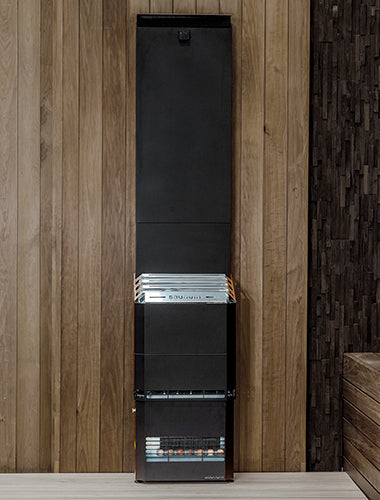

Saunum Air 5 Sauna Heater Package
Air Series, 4.95kW Sauna Heater Package
Saunum’s patented air blending system draws heat and steam from near the ceiling, mixes it with cooler, more oxygenated air near the floor, then directs more comfortable, breathable steam throughout the room. This equalizes room temperature by more than 60% for a significantly better sauna experience. You’ll enjoy longer, more satisfying sauna sessions with more intense sweating.
All sauna bathers have experienced the same issue – extreme variance in temperature and oxygen from the ceiling to the floor. The temperature at the ceiling can often exceed 200°F, while at the floor it will be under 100°F, causing your feet to feel uncomfortably cool and your head to be too hot. The temperature and oxygen level should be more consistent throughout.
This revolutionary sauna heater includes an ingenious climate equalizing system that more evenly balances the temperature and oxygen levels throughout your sauna for softer, more breathable air.
Saunum is all about the air!
• The AIR we heat
• The AIR we feel
• The AIR we breathe
Enrich the air with Himalayan salt ions
The ions released from the patented Himalayan salt feature are propelled into the sauna to maximize their health benefits. Salt aerosol has long been used for its benefits as a decongestant, inflammation reduction, and possesses anti-microbial properties.
Add another dimension to your sauna with aromatherapy
Breathe deep, relax, let the room fill with heat and steam, and clear away your tension with the invigorating and awakening scents of Saunum’s available aromatherapy option.
Experience 6 distinct styles of sauna bathing
Saunum lets you customize your bathing experience by adjusting airflow, temperature, and steam to suit your exact preferences.
• Russian Banya – Air blending, massive stone volume, intense heat, and steam. Heat, ventilation, and humidity merge to simulate a traditional banya.
• Finnish Sauna – Harness the power of intense, dry heat for an authentic Finnish sauna. Its huge rock mass radiates intense, consistent heat.
• Estonian Sauna – Long sweats, soothing heat and rich steam are the hallmarks of an Estonian sauna.
• Yoga Sauna – Oxygenated airflow allows for yoga sauna experience. Even at floor level, equalized Air delivers warming heat for ideal hot yoga sessions.
• Salt Sauna – A patented system propels healthful Himalayan salt ions throughout the room. Air passes across the salt chamber creating a true salt sauna.
• Aroma Sauna – Not possible in most saunas, Saunum uses high humidity and air movement to bring satisfying aroma to your experience.
Now available through Sauna Friend Sanctuary Supply, your private wellness association.
Specs - DOWNLOAD SPEC SHEET
AIR 5 CSB PKG – Heat Equalizing System
| Specification | Details |
|---|---|
| Model (Package) | AIR 5 CSB PKG |
| Model | AIR 5 |
| Certification / Global Safety Rating | UL (Underwriters Laboratories) |
| Heat / Steam Equalizer Module | 3-Speed, Whisper-Quiet Operation |
| Ceiling Hot Air Intake Size | 17.72" × 4" (450.09 × 101.6 mm) |
| Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
| Cool Air Intake Size | 2" × 2.75" (50.8 × 69.85 mm) |
| Blended Air Output Size | 4.31" × 14.13" (109.47 × 358.90 mm) |
| Himalayan Salt & Aroma Tray Type | Removable, Slotted |
| Himalayan Salt & Aroma Tray Size | 16.5" × 4.5" (419.1 × 111.76 mm) |
AIR 5 – Sauna Heater System Specifications
| Specification | Details |
|---|---|
| Model | AIR 5 |
| Certification / Global Safety Rating | UL (Underwriters Laboratories) |
| Heater Body Style | Solid Steel – Nordic Black |
| Heating Elements | Incoloy (Stainless Steel) |
| Heating Element Protection | Air Tunnels, Slotted Stainless Steel (Three) |
| Room Size | 106–212 cu. ft. (3–6 m³) |
| Wattage Rating | 4950 W |
| Operating Voltage | 240 VAC |
| Phase | Single |
| Amperage | 20.7 A |
| Weight | 106 lbs (48 kg) |
| Shipping Weight (with Stones) | 238 lbs (108 kg) |
| Width | 18.3" (465 mm) |
| Depth | 12.4" (315 mm) |
| Height | 75.4"–95" (1915–2413 mm) |
| Minimum Ceiling Height | 75.4" (1915 mm) |
| Stone Capacity | 132 lbs (60 kg) |
| Stone Size | 2"–4" (5–10 cm) |
| Circuit Breaker | See Installation and Operation Manual |
| Wire Size – Power Unit | (2) #10 + N + G |
| Wire Size – Power Unit to Elements | 7-Conductor Cable, #14 AWG, 90°C, 5' (152.4 cm) |
| Wire Size – Power Unit to Heat Equalizer | 5-Conductor Cable, #18 AWG, 90°C, 5' (152.4 cm) |
| Room Temperature Sensor | Pre-Mounted, Integrated Cable (150°C), 9.5' (289.56 cm) |
AIRIQ WI-FI – Display Panel Specifications
| Specification | Details |
|---|---|
| Model | AIRIQ WI-FI |
| Certification / Global Safety Rating | UL (Underwriters Laboratories) |
| Type | Digital, Soft-Touch |
| Response | Tactile with Haptic Feedback Technology |
| Language Selection | 16 Languages |
| Wi-Fi Capability | Wi-Fi, App-Based Updates and Operation |
| Notifications | Sauna Ready, Heater Status, Open Door, Overheating Protection |
| Safety Features | Admin Control, Screen Lock, Door Sensor, Overheat Protection |
| Color | Nordic Black |
| Heat Equalizing Control | 3-Speed Adjustability |
| Width | 3.3" (83.82 mm) |
| Depth | 0.8" (20.32 mm) |
| Height | 4.1" (104.14 mm) |
| IP Rating | IP20 |
| Minimum Temperature Setting | 104°F (40°C) |
| Maximum Temperature Setting | 194°F (90°C) |
| Duration Timer | 1–6 Hours |
| Display Panel Cable | 4-Conductor Cable, 20 AWG, 150°C, 15' (475.2 cm) |
| Door Sensor & Cable Assembly | 2-Conductor Cable, 20 AWG, 150°C, 9.83' (299.62 cm) |
| Door Sensor Probe Size | 1" Long × 0.24" Diameter (25 × 6 mm) |
| Operating Temperature Range | −4°F to 145°F (−20°C to 62°C) |
| Programmability | Weekly Scheduling, 3 Programmable Sessions |
| Temperature Units | Fahrenheit or Celsius |
| Region Settings | North American & European Versions |
| Room Temperature Sensor | Pre-Mounted, Integrated Cable (150°C), 9.5' (289.56 cm) |
